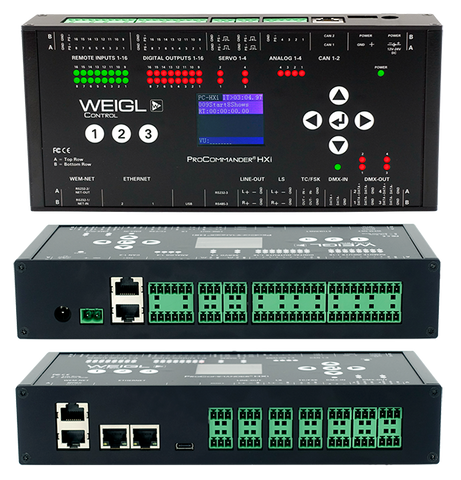

ProCommander® HXi

Features:

• 16 digital outputs

• 16 digital inputs (8x analog)

• 3 Serial Ports (1 RS-485)

• 16 Art-Net/sACN Universes (32 optional)

• 4 PWM Servo

• 4 Analog 0-10vdc
• 16/32 Digital Motor Outputs (32 optional)
• 4 Physical DMX outputs (up to 32 eDMX universes optional)
• Class-D amplifier (x2)
• SMPTE/FSK/PTP/Art-Net/MTC
• AES-67 support (x8)
• CANOpen Master (x2)
• Full Digital Motor Support Included (Dynamixel, Elmo, Copley, HD-IDT and more)

Technical Highlights:

• DMX merging, input and systems integration – eliminate additional hardware
• Dual Network jacks for UDP messaging and show file uploads
• Full polyphony and audio routing for dynamic synced audio spaces
• User configurable serial ports (3) allow for both input and output integrations with legacy and industrial show devices
• Powerful Class-D amplifier provides in-place amplification
• DMX show start tracking (start shows at 30%, 50% DMX value etc.)
• DMX & Artnet output mapping for digital, analog, PWM and servo outputs
• Sophisticated WEM | Script™ scripting language in addition to easy to use timeline software provides powerful control options
• LED indicators for all I/O components
• Industrial form factor and build
• Screw terminal or push/pull Phoenix connectors
• Graphic display
• WEM-Net daisy chain connection to add up to 32 Pro I/O™ Modules
